Annotate File Widget

An Annotate File widget is the optional Annotator Data Function of the Annotate File action. Protrak calls it once, just before the annotator opens, and uses what it returns to decide which file to show, which annotations to start from, and whether to lock the drawing colour.

Not a React component

This target is a plain data function that returns an object, not JSX. Do not call React hooks in it. It also does not receive the common settings and userData properties.

---

pageContext shape

Source: useAnnotateFile.js

{
  fileUrl,            // Download URL resolved from "File to Annotate"
  instanceContext,    // Full record object for the instance being viewed
  relatedInstContext, // Full record object for the related instance, or null for File Source = Self
}

What to return

Return an object, or a promise of one. Every property is optional — {} is a valid "do nothing" result, and the right thing to return on any error.

Property	Effect
fileUrl	Open this file instead of the configured attachment
initialAnnotations	Open with these annotations instead of the stored ones
strokeColor	Force this colour for new annotations and disable the colour picker

A failure blocks annotation entirely

If the function throws, rejects, or isn't found on window, the annotator does not open. Wrap anything that can fail in try/catch and return {}.

---

Registration

{
  "name": "ReviewAnnotationData",
  "displayName": "Review Annotation Data",
  "target": "AnnotateFile",
  "description": "Forces red markup for rejected records"
}

The target must be exactly AnnotateFile — unlike layout widgets, Any is not accepted. The widget must be Published, and the function name must match the widget Title exactly.

---

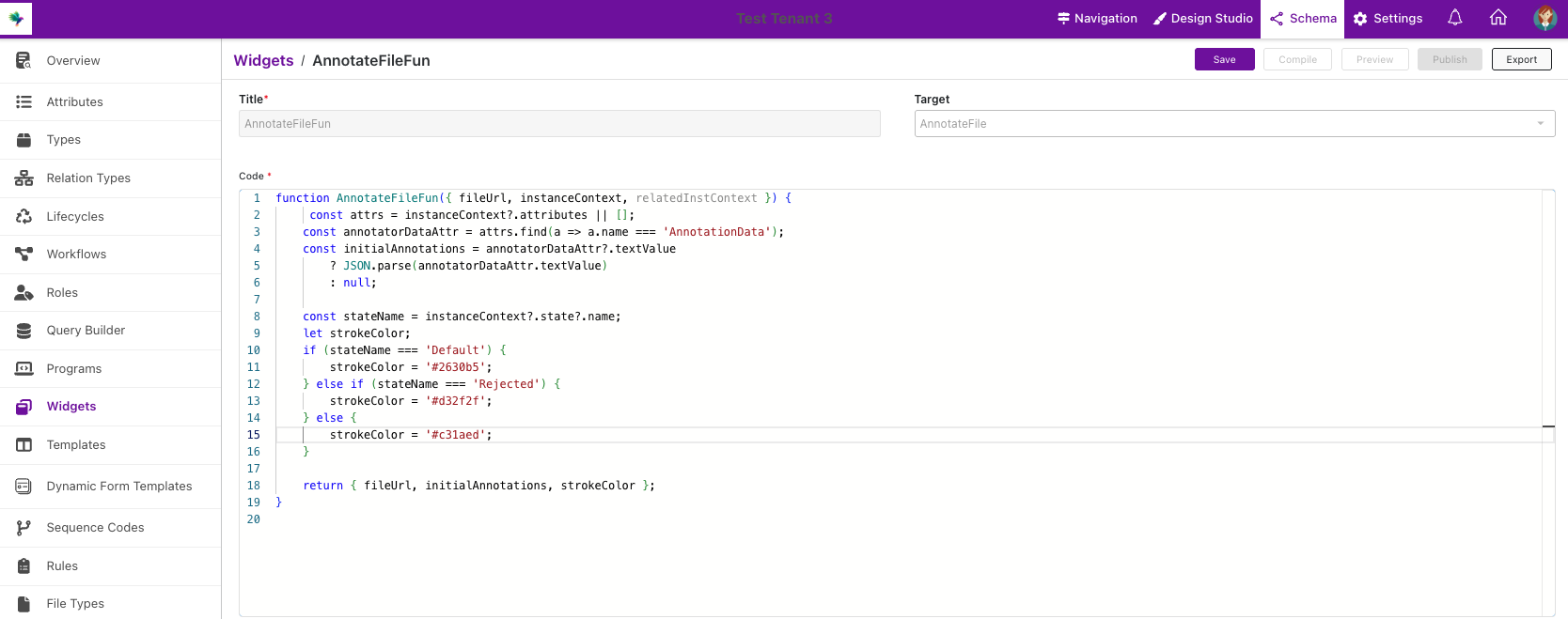

Example — Force a colour based on the record's state

function ReviewAnnotationData(context) {
  var state = context.instanceContext && context.instanceContext.state;

  if (state && state.name === "Rejected") {
    return { strokeColor: "#d32f2f" };
  }

  return {};
}

---

Tips

• Keep it fast — the annotator shows a spinner until the function returns.
• strokeColor applies to new annotations only; stored ones keep their own colours.
• initialAnnotations uses the same page-indexed format Protrak stores in the text attribute.
• Full action setup: Annotate File Action.
